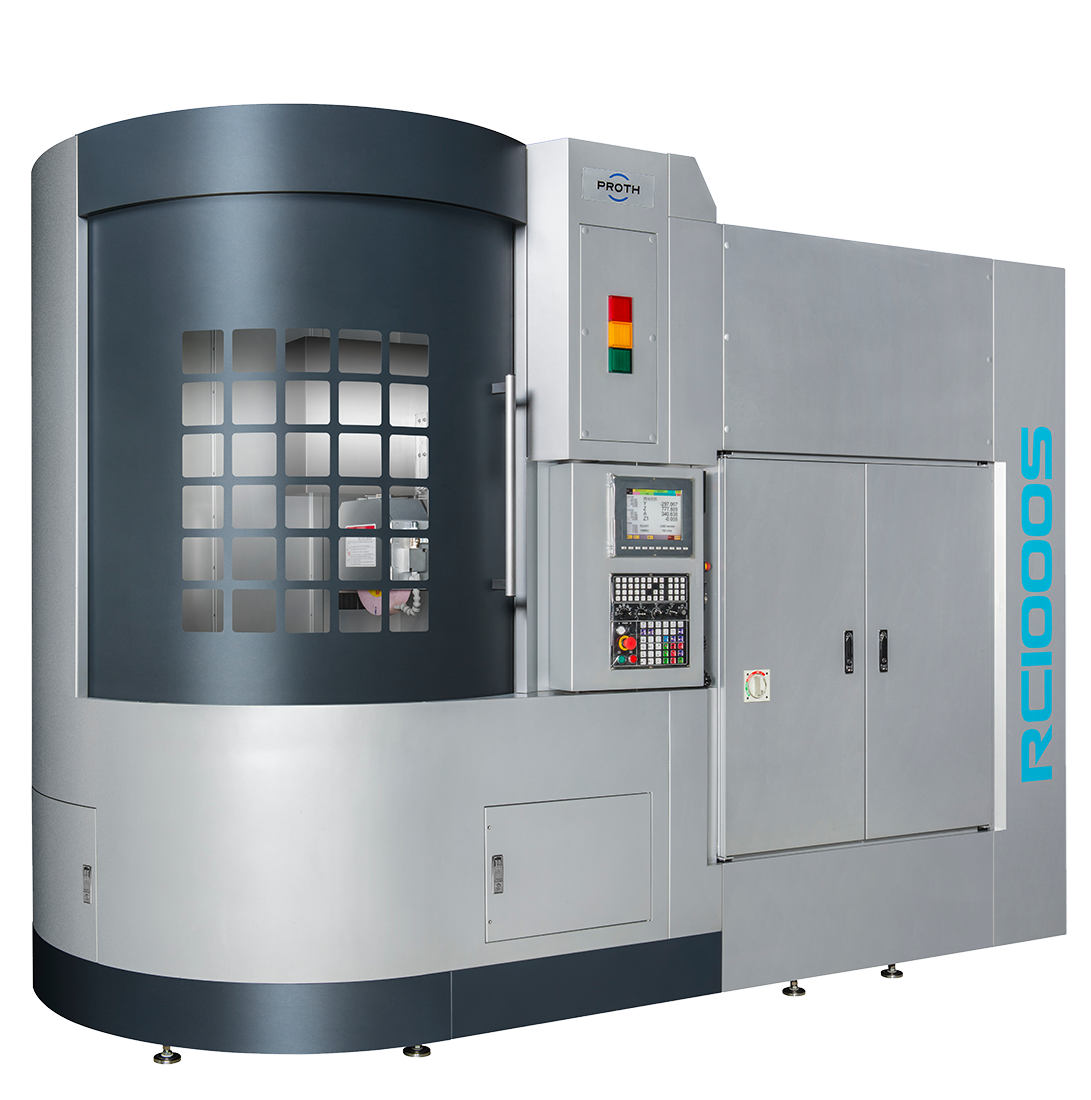

PSRC-800S / PSRC-1000S

  • Description
  • Specification
  • Optional
Cross Slideways Cross Movement Vertical Downfeed Auto Down Feed Rotary Table
Double Vee Ways Servo Control Rapid Up/Down AD1 Standard Bearings/Hydrostatic
  • The surfaces of longitudinal table ways are all hand scraped to getting perfect contact pattern and to ensure very high accuracy.
  • ongitudinal table ways are designed to have slide surfaces longer than that of the working surface and equal to the table length to keep the table free from torsion and deflection.
SPECIFICATION / MODELS
PSRC
800S 1000S
General Capacity Max. grinding radius mm 450 550
Spindle center height from table mm 500
Max. height from table top to bottom of standard wheel mm 322
Table diameter mm 800 1000
Rotary Table Max. speed r.p.m. 10-60
Table motor kW 3.5
Cross Movement Continuous cross feed mm/min 2000
MPG feed per revolution 0.1mm x1/x5/x10
MPG feed per division 0.001mm x1/x5/x10
Vertical Downfeed Rapid traverse approx. (option) mm/min 400
MPG feed per revolution 0.1mm x1/x5/x10
MPG feed per divison 0.001mm x1/x5/x10
Grinding Wheel Dimension (O.D x W x I.D) mm 355x50x127
Spindle speed(50/60Hz) r.p.m. 1500/1800
Motor Spindle motor 7.5kW/10HP(11kW/15HP)
Weight Net weight kg 6500 7000
Gross weight kg 8000 8500
Machine Size Dimension(L x W x H) m 4.1x2.2x2.5

Notes:
  • Since we subscribe to a process of continuous improvement for our products specifications are subject to change without notice.
  • Machine appearance will change depending upon different optional equipment selected.
  • Equipment marked with () is available at additional extra charge. Other special applications may be provided upon specific requests from customers. Please contact us for more details.
  • Machines are shown with optional equipments.
